Chronos Studio

Design

Design mockups

These mockups show the layout Chronos Studio is being built to, approved on 28 September 2026. Track names and show data are made up. The Playlist page is still a placeholder.

Desktop

Mac and Windows, with full control. The reference window is 1440 × 900, and every page fits the window.

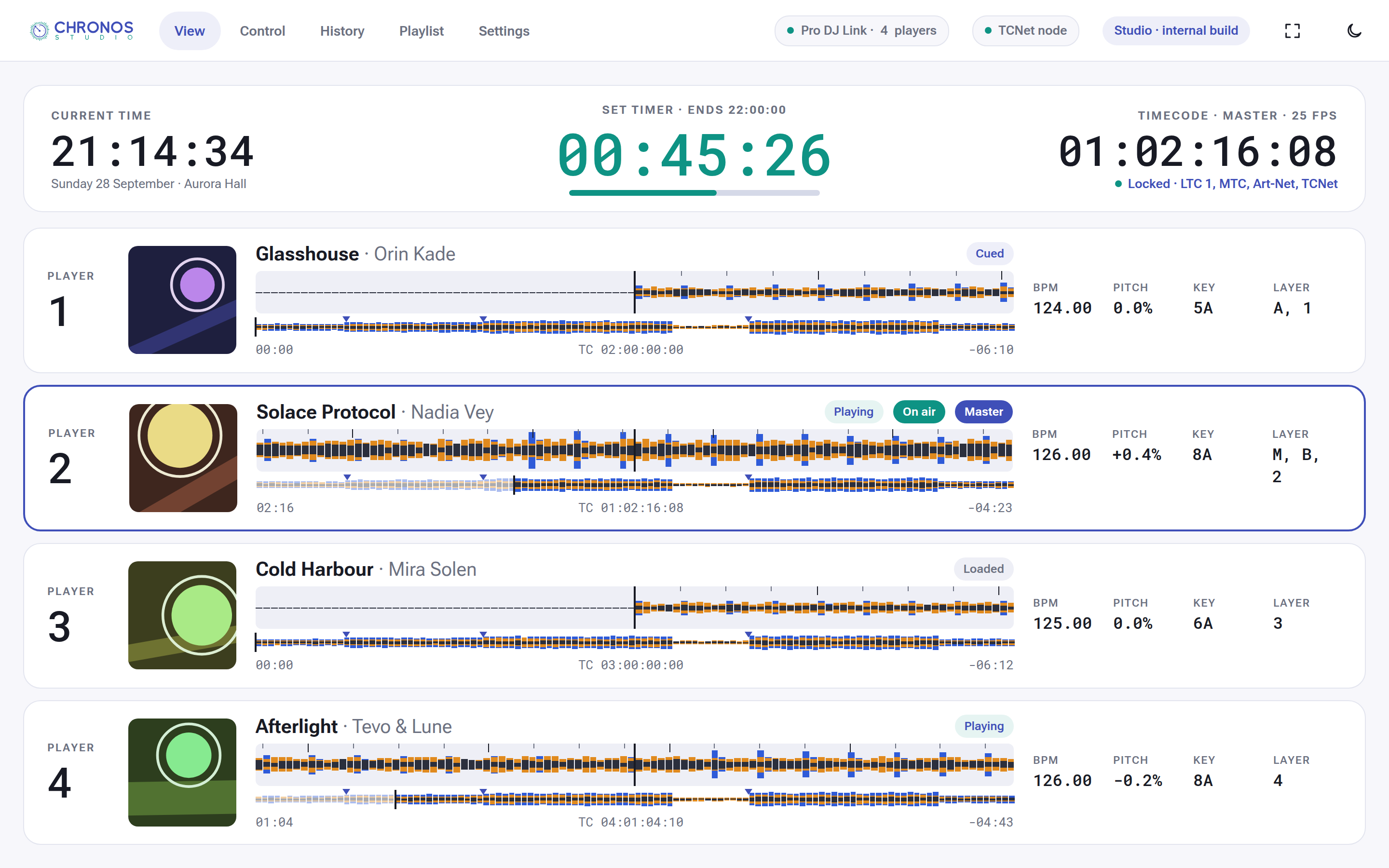

  • View: a timer strip (current time, set timer, running timecode), then one playback card per connected Pro DJ Link player, with artwork and decoded 3-band waveforms.

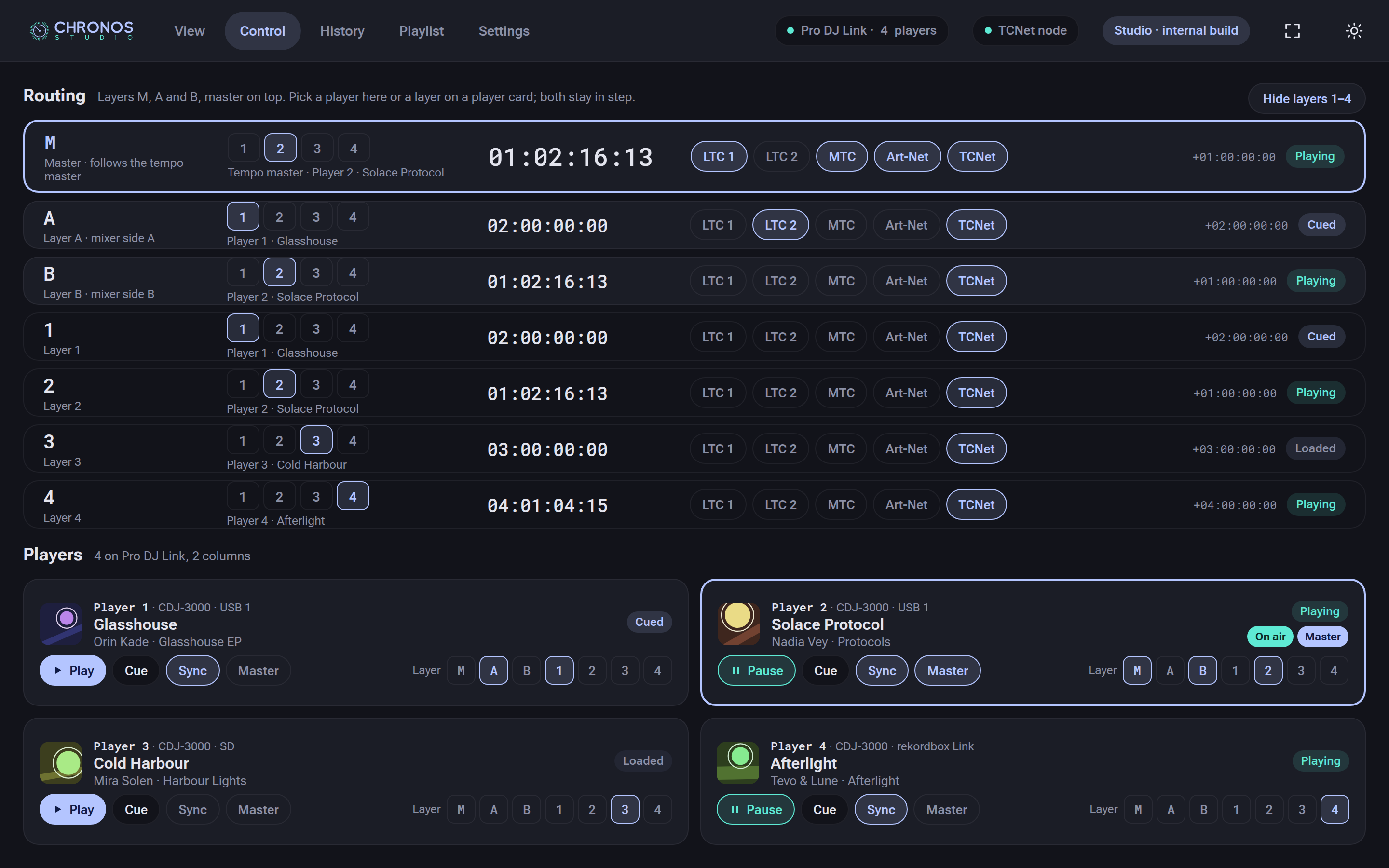

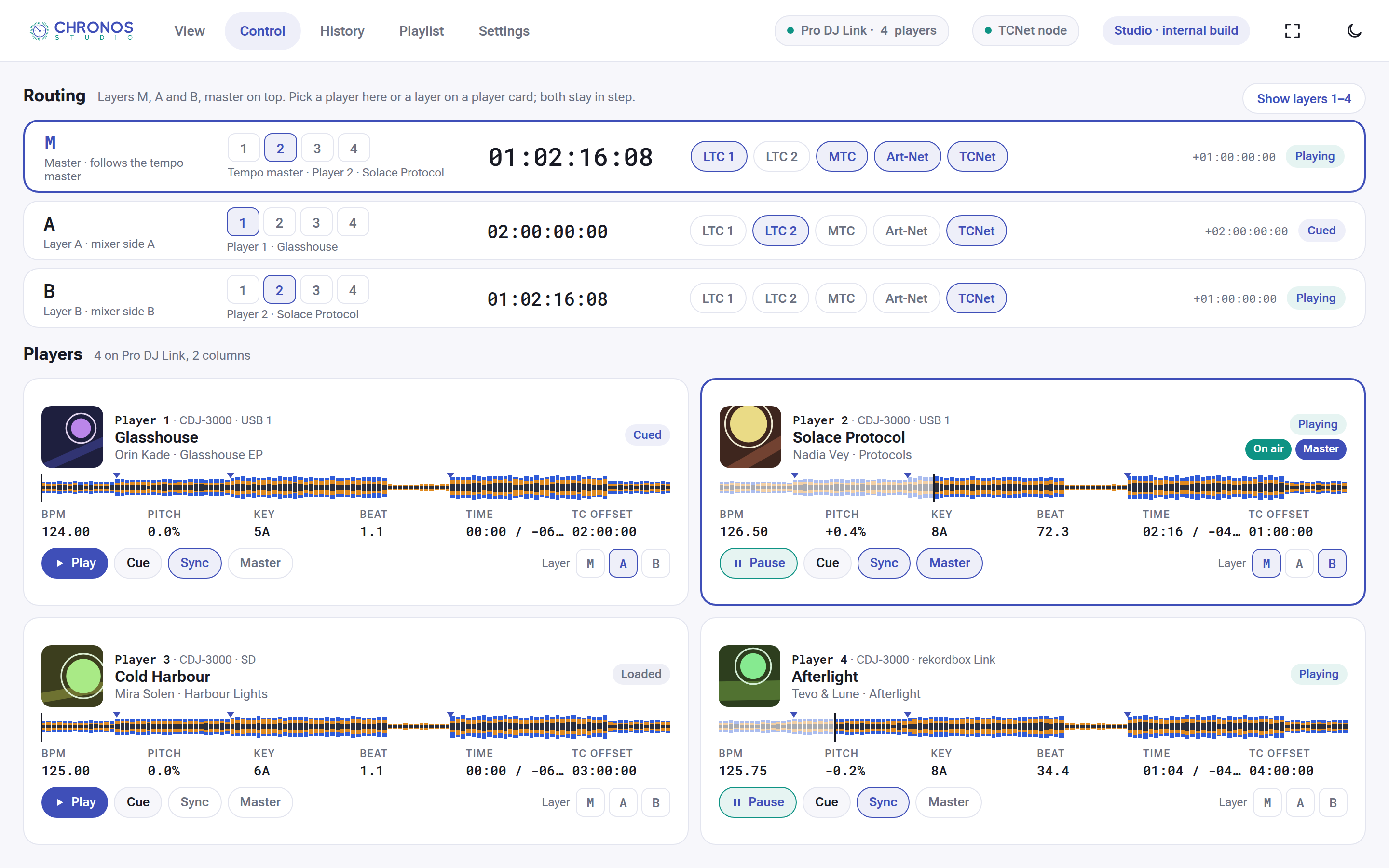

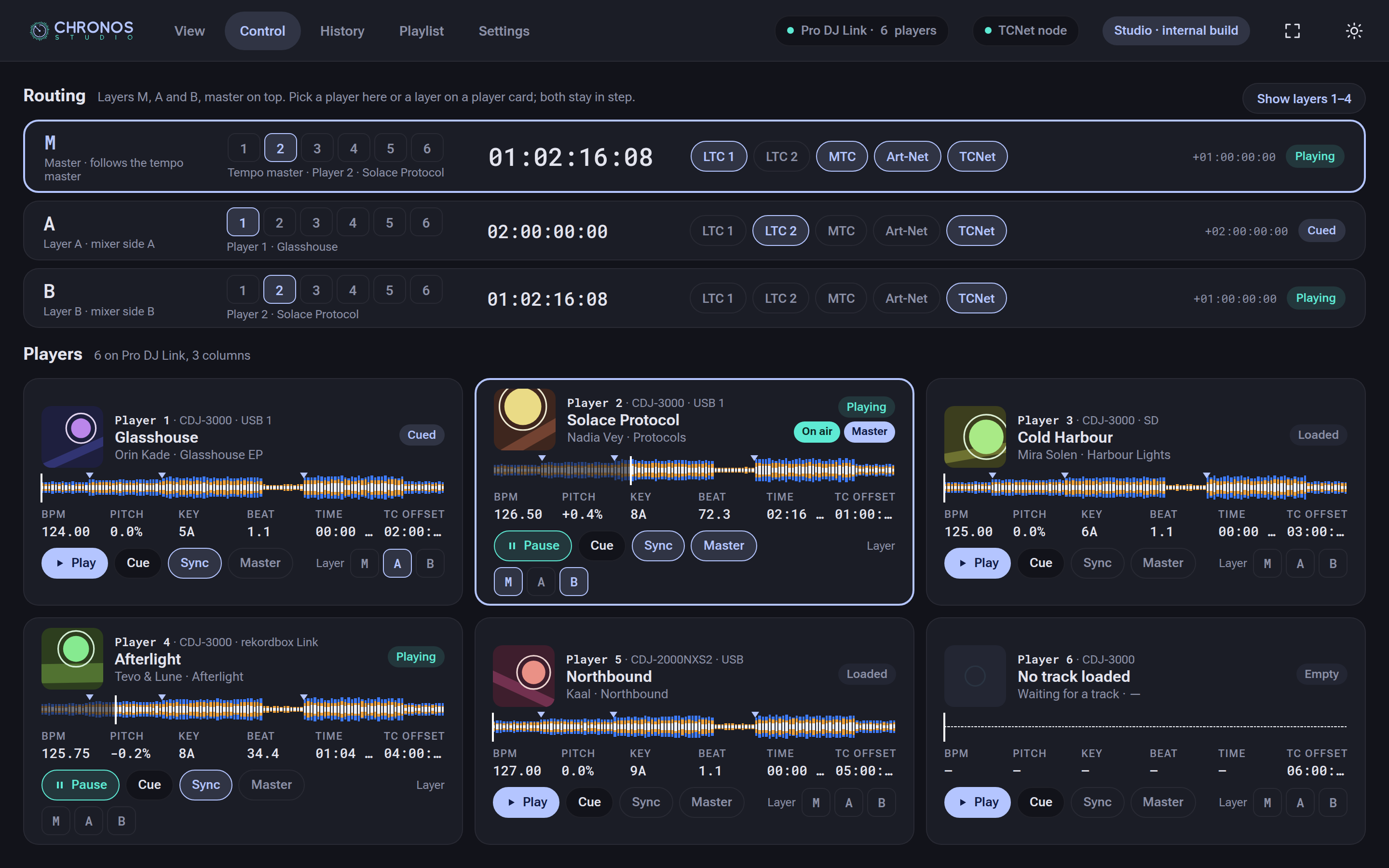

  • Control: routing. TCNet layers M, A and B are stacked with Master on top, and layers 1–4 are hidden until you show them. Player cards sit below in 2 or 3 columns, with play, cue, sync and master. You can pick a player on a layer or a layer on a player, and both stay in step.

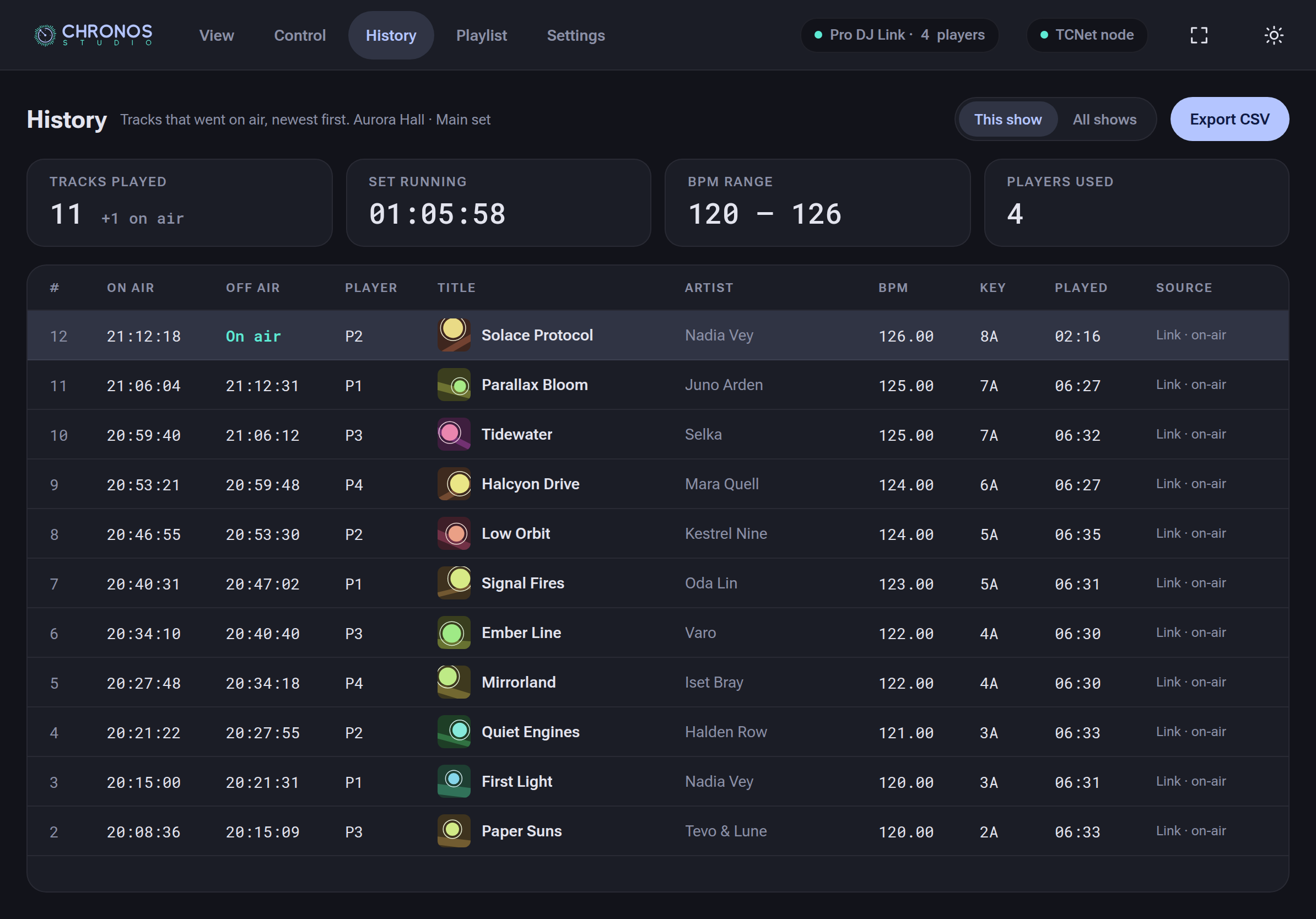

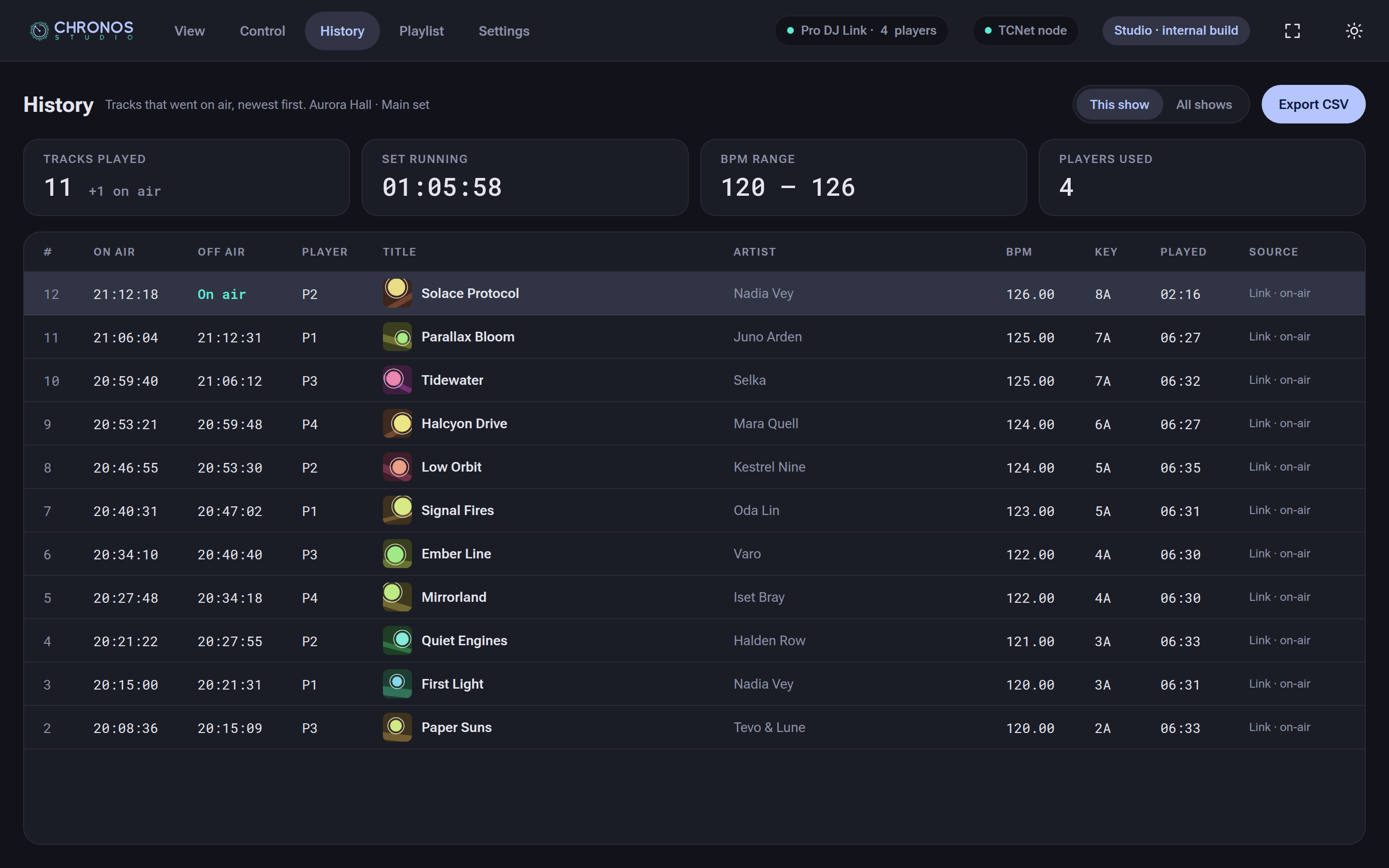

  • History: tracks that went on air, newest first, with CSV export.

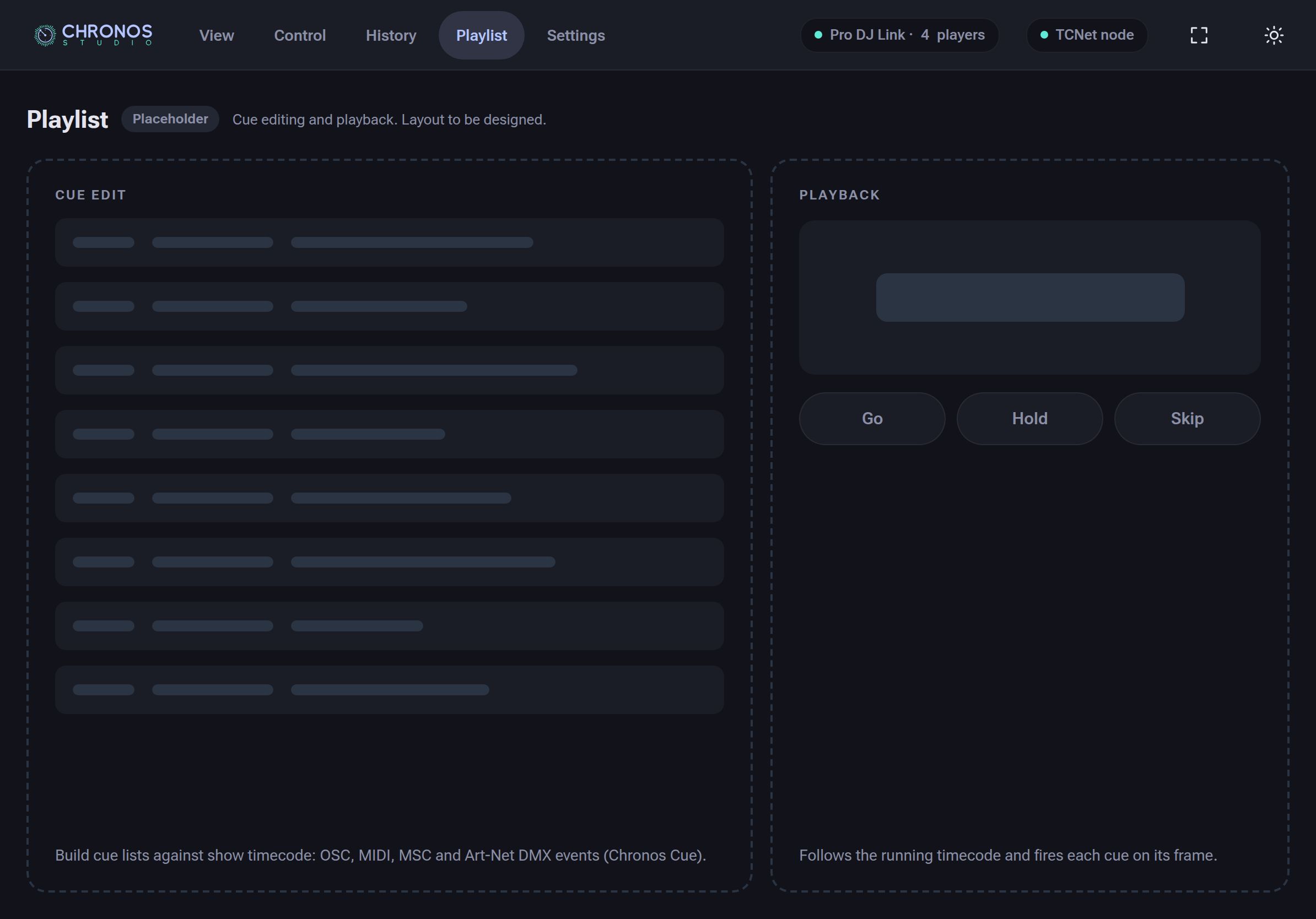

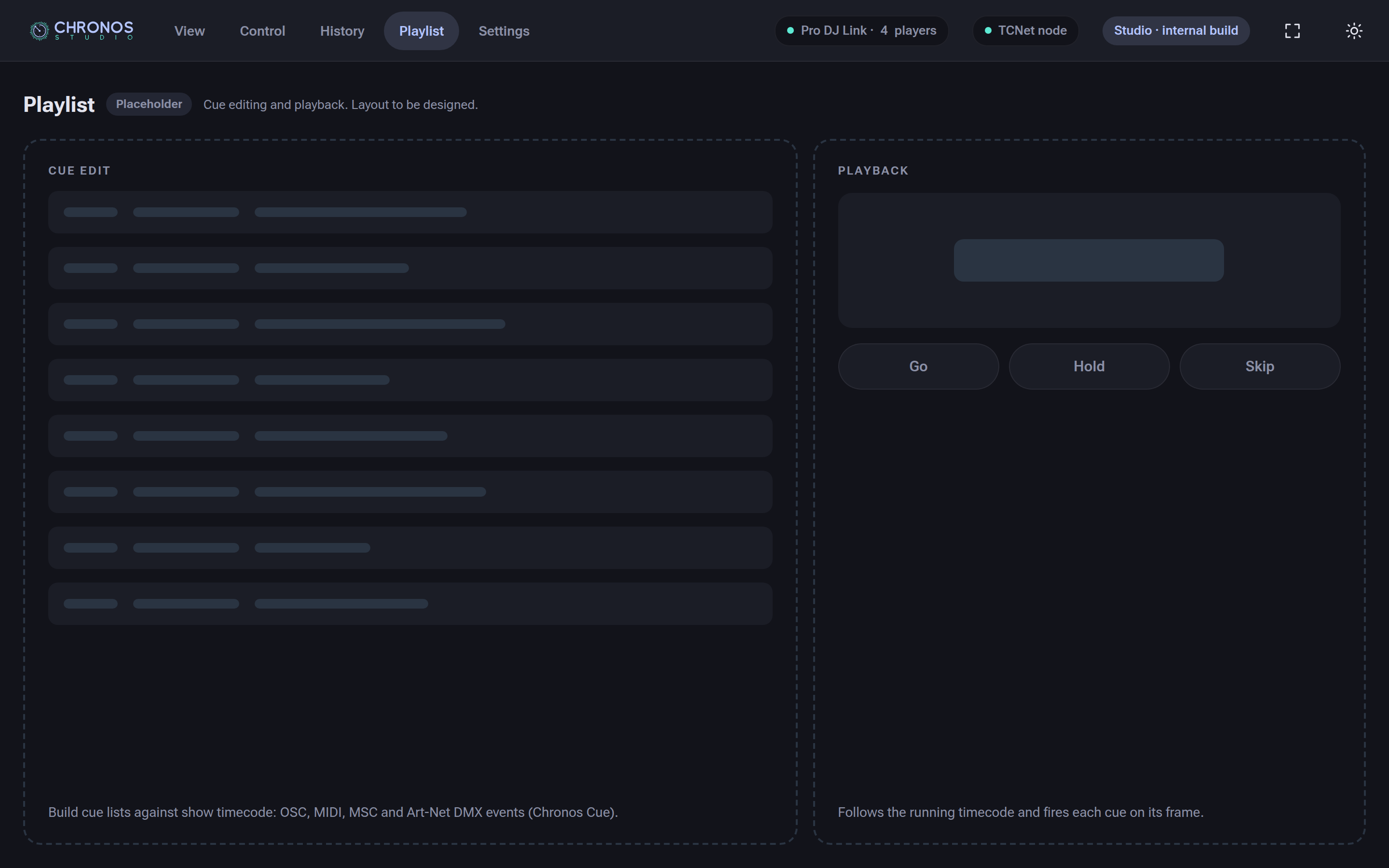

  • Playlist: a placeholder for cue editing and playback.

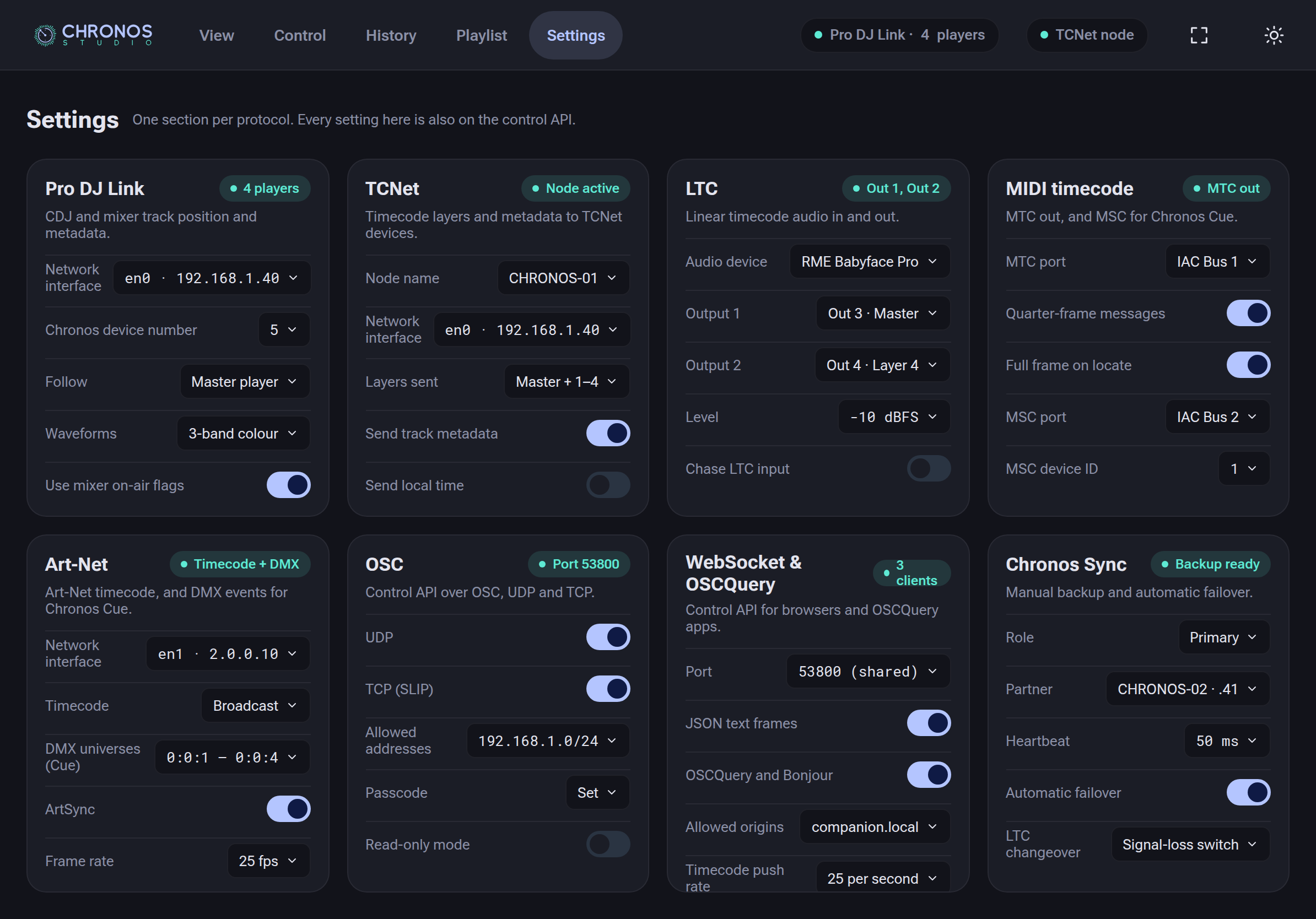

  • Settings: one section per protocol.
  • Full screen: a toggle in the top bar.

Desktop: View 4 players Dark Desktop: Control routing layers M A B Dark Desktop: History Dark Desktop: Playlist placeholder Dark Desktop: Settings Dark Desktop: View full screen Dark Desktop: View 4 players Light Desktop: Control routing 4 players Light Desktop: View 6 players Dark Desktop: Control routing 6 players 3 columns Dark Desktop: Control layers 1 4 shown Dark

iPad

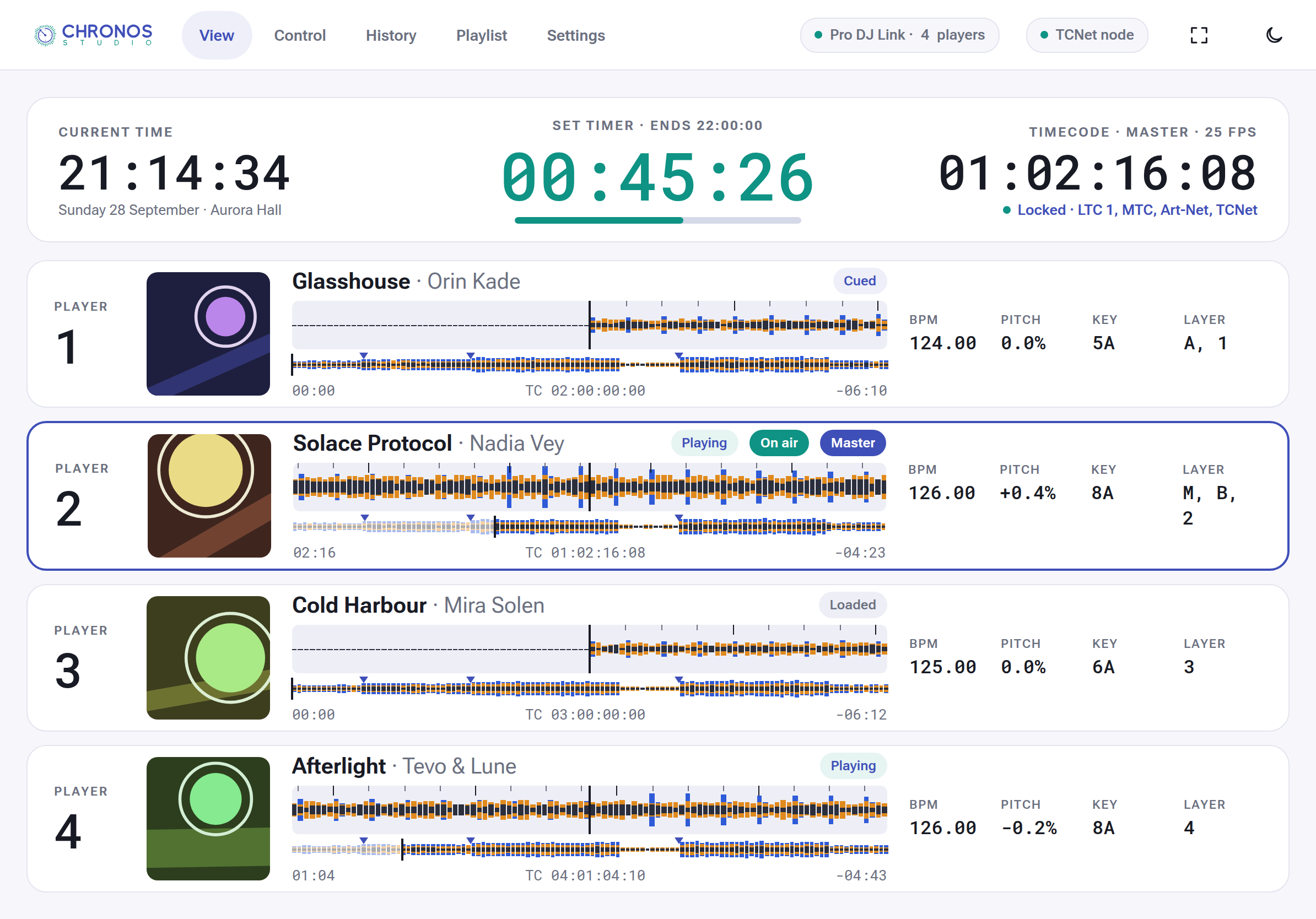

The same five pages with full control, sized for landscape (1194 × 834) with 44 pt touch targets.

iPad: View Dark iPad: Control routing Dark iPad: History Dark iPad: Playlist placeholder Dark iPad: Settings Dark iPad: View Light

Phones

iPhone and Android phones are view only: nothing on a phone controls the show. You swipe between two pages:

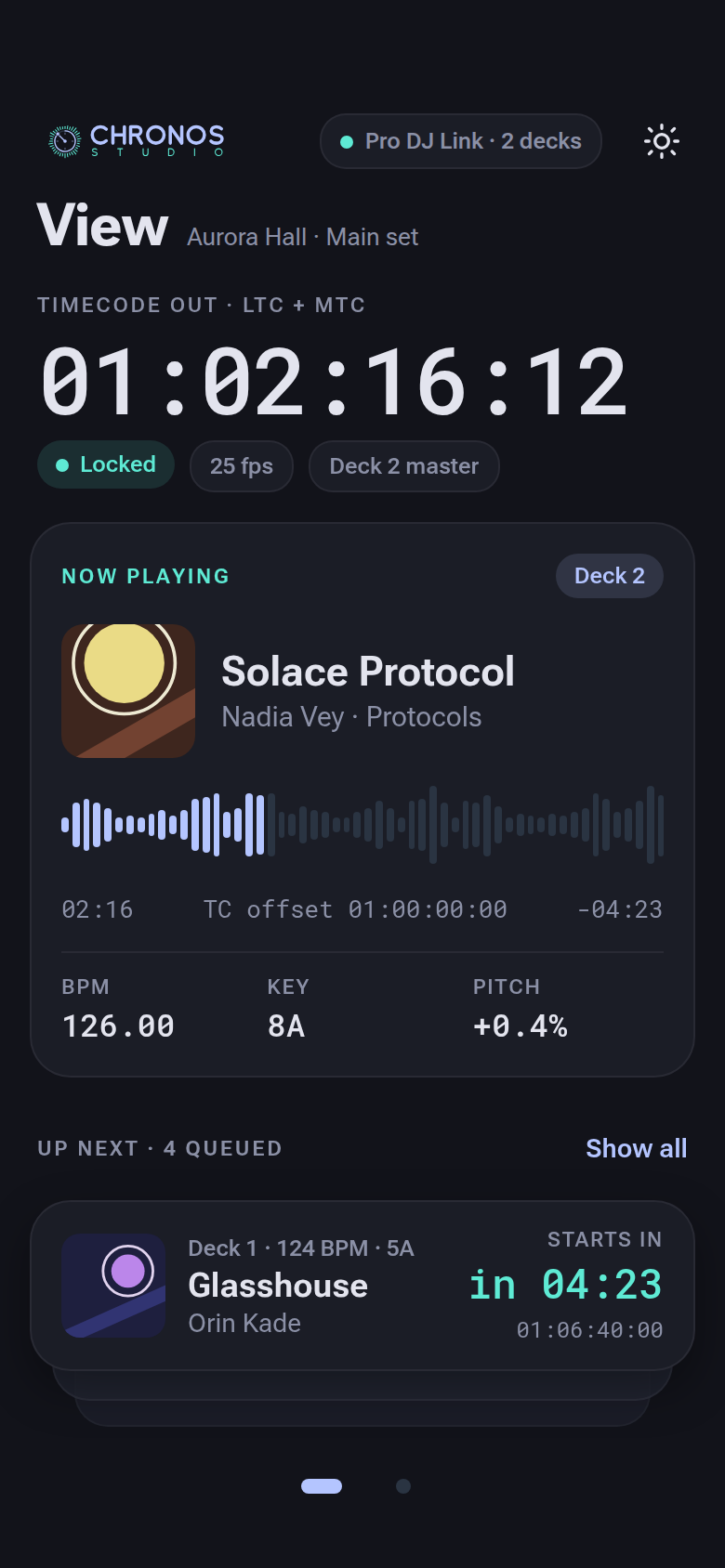

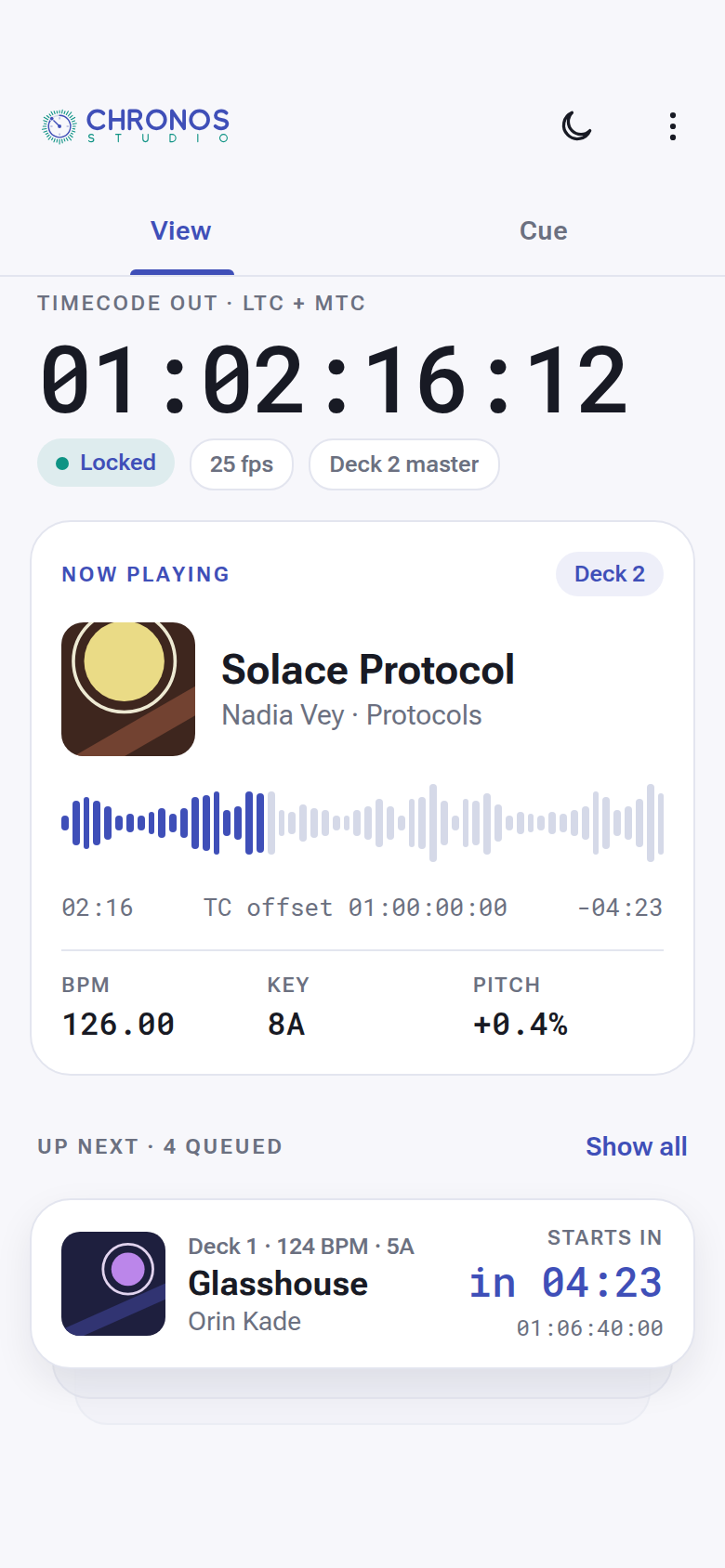

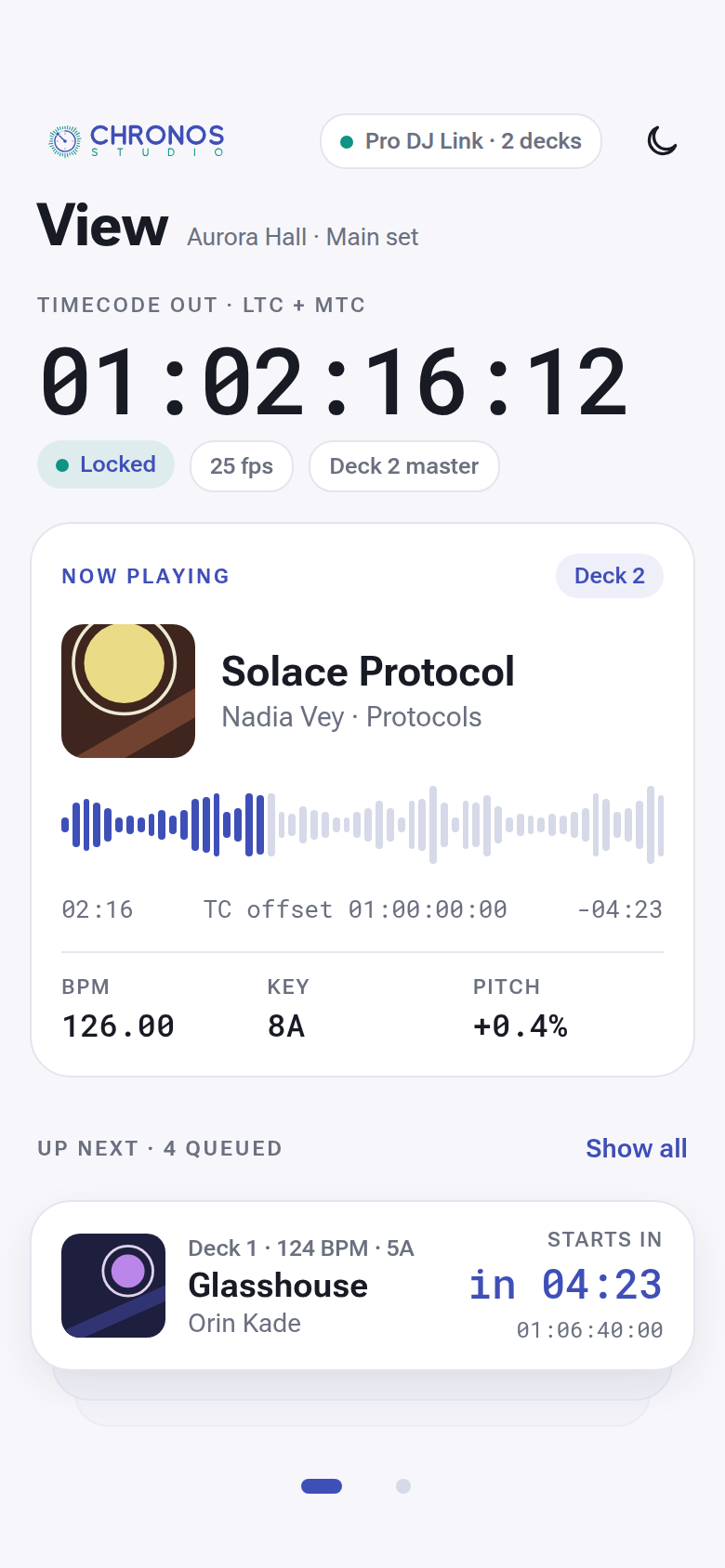

  • View: the running timecode, a Now Playing card, and the next tracks stacked beneath it.

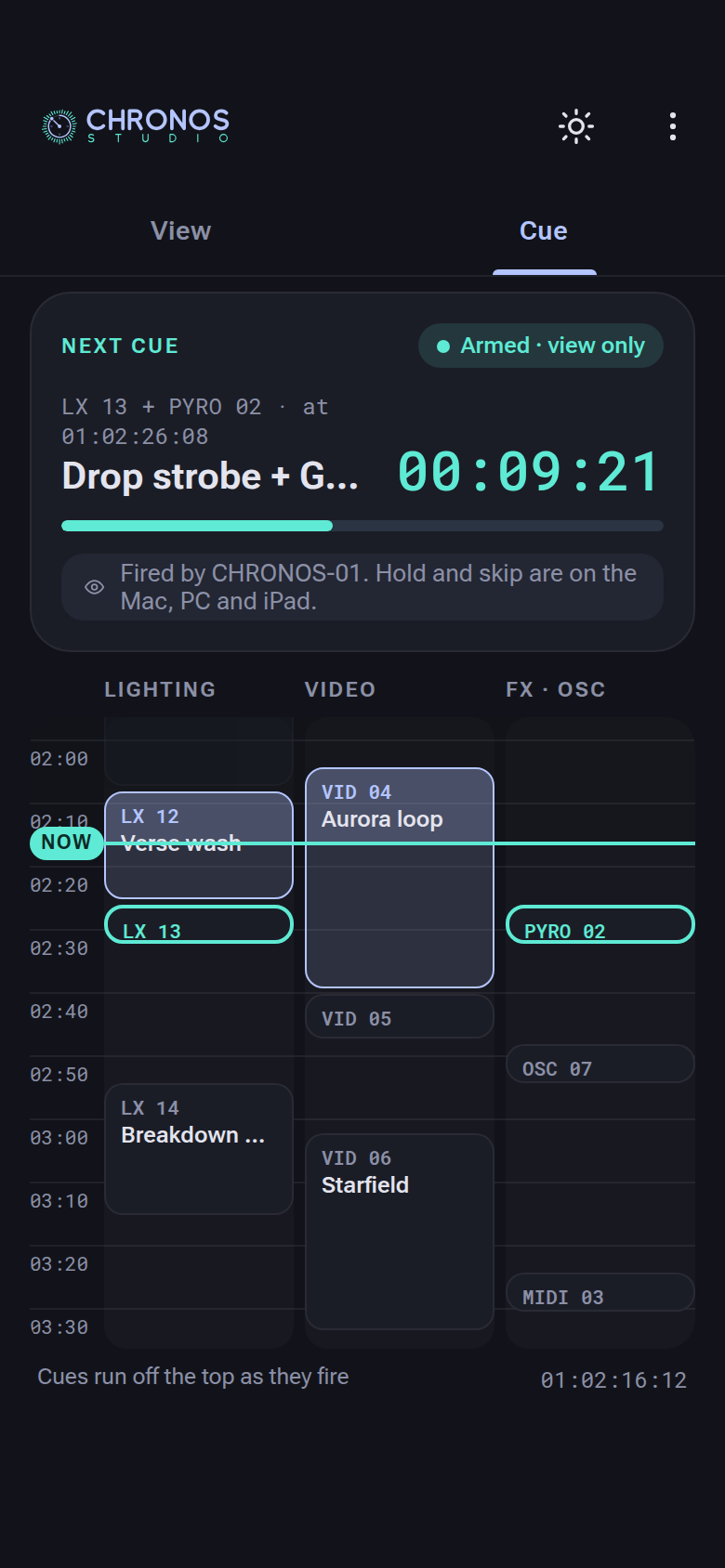

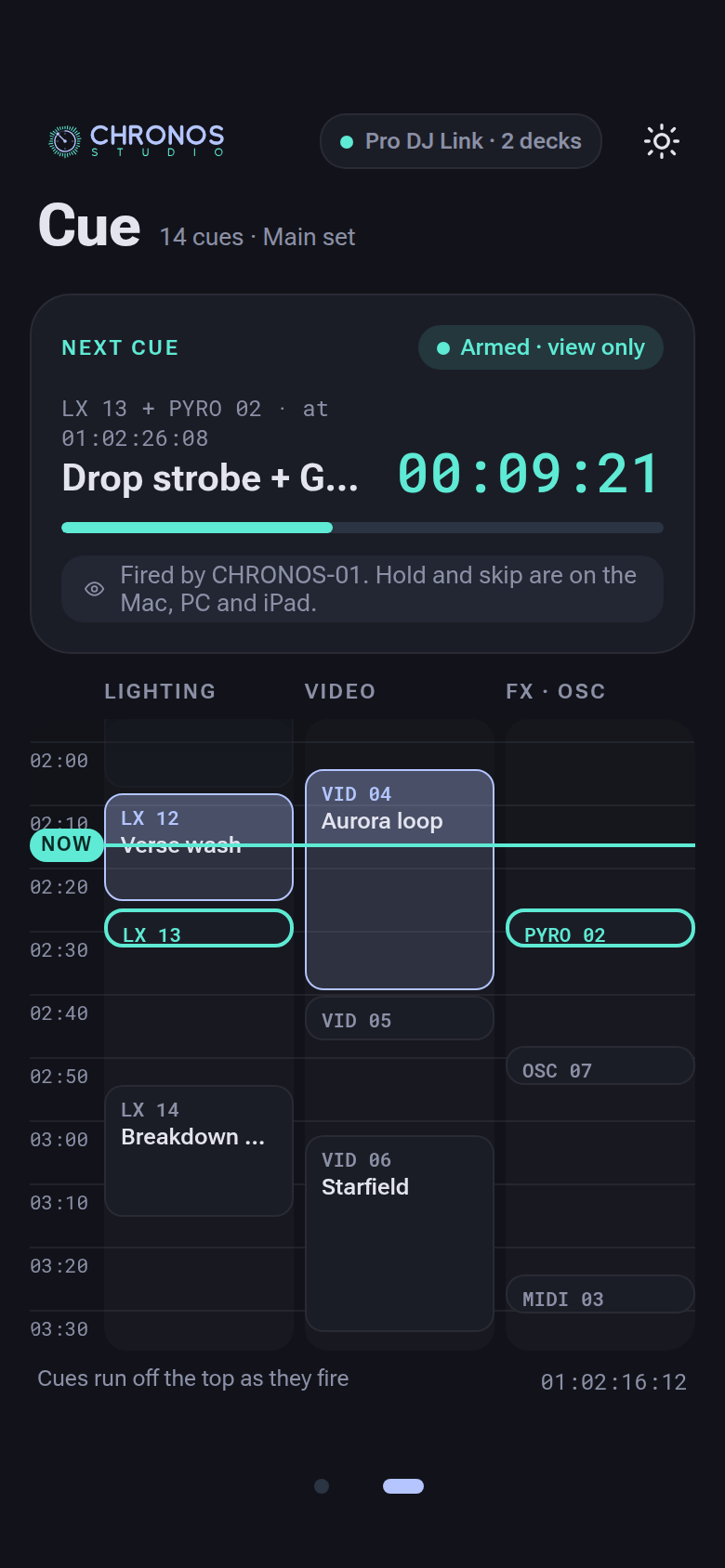

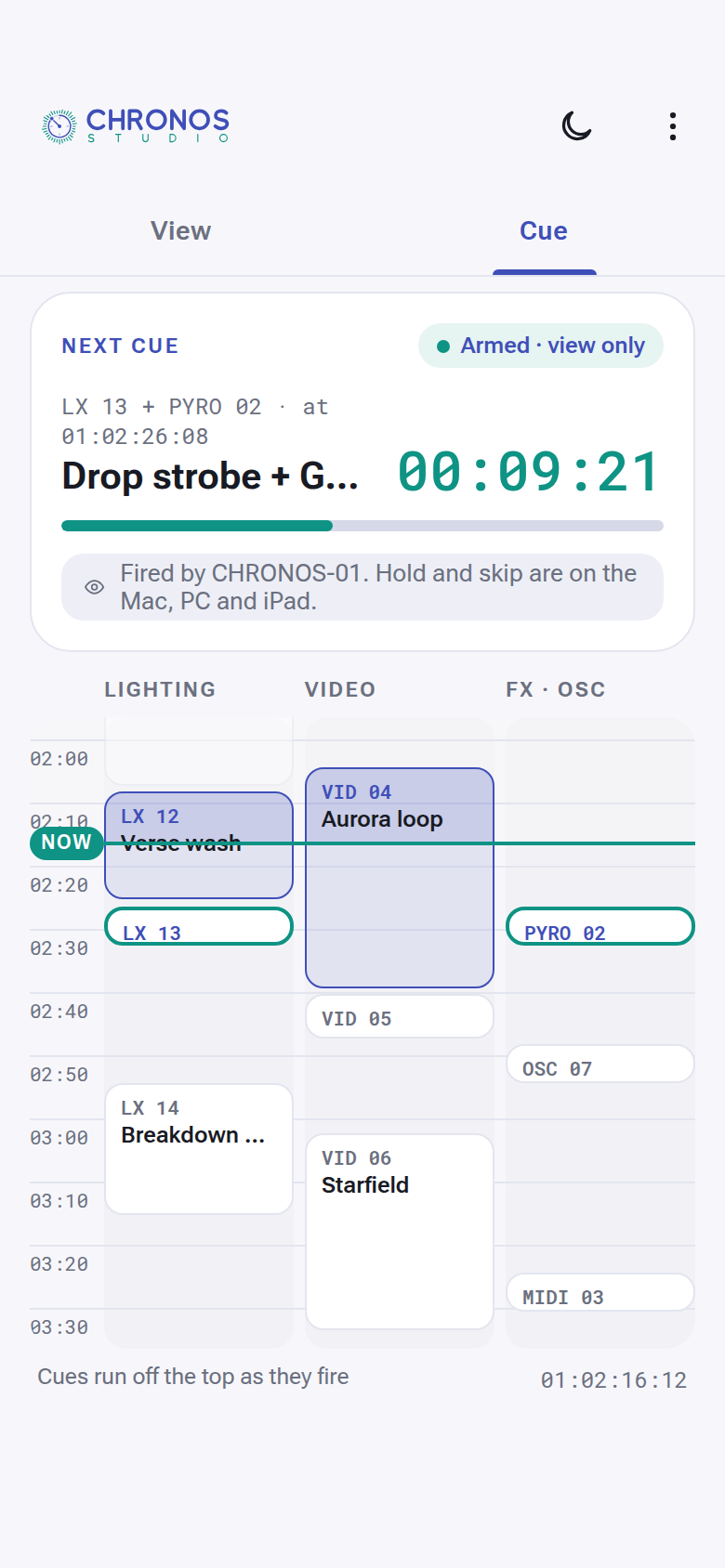

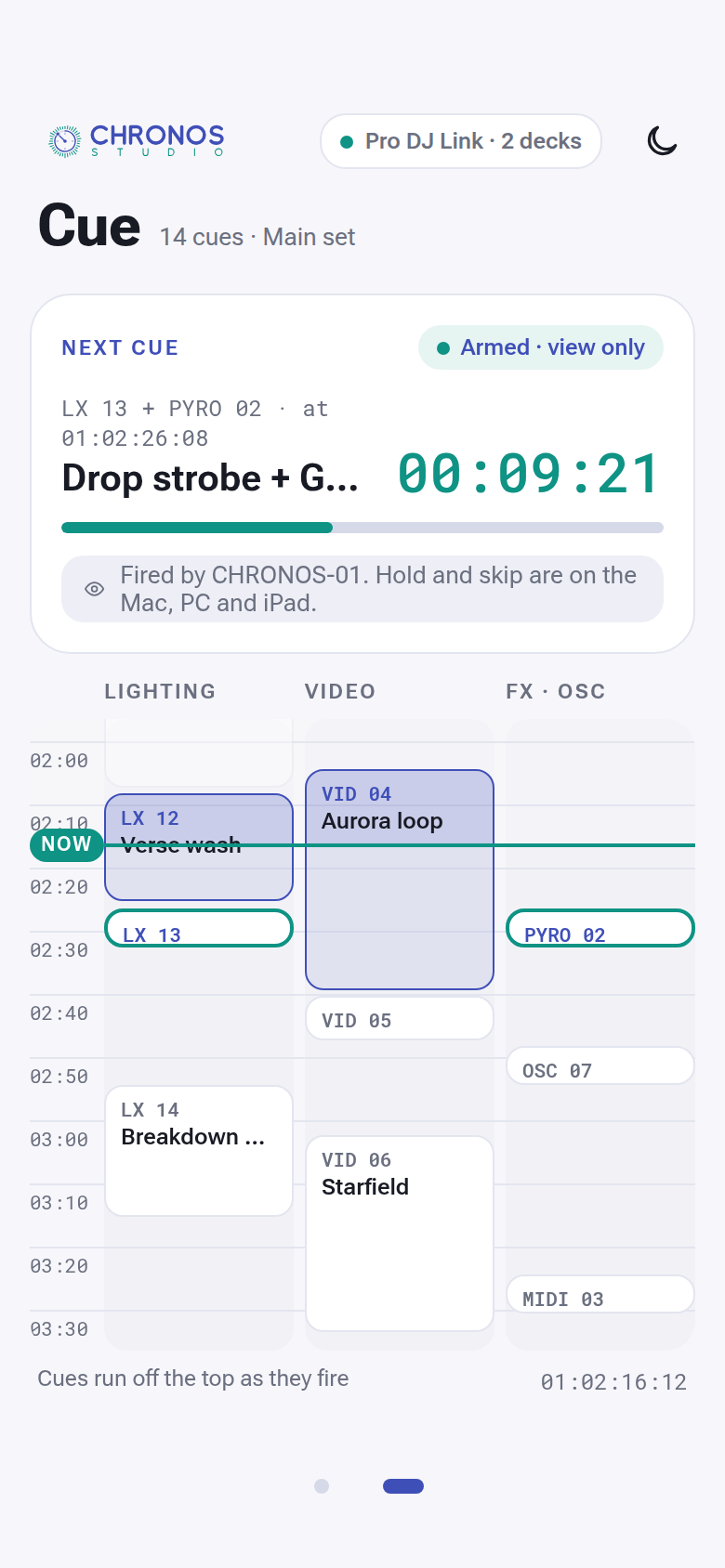

  • Cue: the next cue with a frame-accurate countdown, and a timing stack where cues run off the top as they fire.

Phone: iPhone View Dark Phone: iPhone Cue Dark Phone: iPhone View Light Phone: iPhone Cue Light Phone: Android View Dark Phone: Android Cue Dark Phone: Android View Light Phone: Android Cue Light
